Attention in NumPy: Scaled Dot-Product, Masks and Multiple Heads

Attention is a small amount of linear algebra wrapped around one softmax. It is also the part of a transformer that people most often describe with metaphors ("the model looks at the relevant words") instead of equations. This post implements it in NumPy, builds a toy example where the weights are chosen by hand so the heatmaps can be read without guessing, and measures why the $1/\sqrt{d_k}$ factor is not optional.

Scaled dot-product attention

Given queries $Q\in {\mathbb{R}}^{T\times d_k}$, keys $K\in {\mathbb{R}}^{T\times d_k}$ and values $V\in {\mathbb{R}}^{T\times d_v}$,

where the softmax is applied row by row and $M$ is an optional additive mask whose entries are $0$ (allowed) or $-\mathrm{\infty }$ (forbidden). Row $i$ of the output is a convex combination of the value vectors, with weights that measure how well query $i$ matches each key. Three properties follow directly from the formula and are worth stating once:

• The output is permutation-equivariant in the keys and values: attention has no notion of order unless the inputs carry positional information.
• The weights sum to one per query, so attention averages values; it cannot amplify a single value beyond its own magnitude.
• The cost is $O(T^{2}d)$ in time and $O(T^2)$ in memory for the score matrix, which is the whole reason long-context work exists.

import numpy as np

def softmax(x, axis=-1):
    x = x - x.max(axis=axis, keepdims=True)            # shift for numerical stability
    e = np.exp(x)
    return e / e.sum(axis=axis, keepdims=True)

def attention(Q, K, V, mask=None):
    d = Q.shape[-1]
    S = Q @ np.swapaxes(K, -1, -2) / np.sqrt(d)        # (..., T_q, T_k) scores
    if mask is not None:
        S = np.where(mask, S, -1e9)                    # False -> effectively -inf
    A = softmax(S)
    return A @ V, A                                    # output and the weights themselves

WARNING

Use a large negative finite number for masked positions, not -np.inf. If an entire row is masked (it happens with padding masks on empty sequences), exp(-inf - (-inf)) produces nan and the loss silently becomes nan several layers later. The x - x.max() shift in the softmax is equally non-negotiable: without it, exp overflows for logits above about 709 in double precision and far earlier in float16.

Masks

A causal (decoder) mask forbids query $i$ from attending to keys $j>i$; it is a lower-triangular boolean matrix, np.tril(np.ones((T, T), bool)). A padding mask forbids attending to positions that are not real tokens, and is broadcast across queries. Both are combined with logical AND before being passed in. Because the mask is applied to the scores before the softmax, the forbidden positions receive exactly zero weight and the remaining weights still sum to one.

Multi-head attention

One attention head computes one weighting pattern per query. Multi-head attention projects the input into $h$ lower-dimensional subspaces, runs attention independently in each, concatenates the outputs, and mixes them with an output projection:

with $d_k=d_v=d_{\text{model}}/h$ so that the total cost matches a single full-width head. In code the per-head projections are one matrix each, reshaped and transposed so that the head axis becomes a batch axis:

def split_heads(X, h):                                 # (T, d_model) -> (h, T, d_model / h)
    T, d = X.shape
    return X.reshape(T, h, d // h).transpose(1, 0, 2)

def merge_heads(Y):                                    # (h, T, d_k) -> (T, h * d_k)
    h, T, dk = Y.shape
    return Y.transpose(1, 0, 2).reshape(T, h * dk)

def multihead(X, Wq, Wk, Wv, Wo, h, mask=None):
    Q, K, V = (split_heads(X @ W, h) for W in (Wq, Wk, Wv))
    Y, A = attention(Q, K, V, mask)                    # broadcasting over the head axis
    return merge_heads(Y) @ Wo, A                      # A has shape (h, T, T)

A toy sequence with hand-built heads

Learned attention weights are hard to interpret because the projections are opaque. To see what the mechanism can do, the toy below constructs the projections by hand. Each token is represented by a one-hot word identity concatenated with a one-hot position, and two heads are given different jobs:

• Head 1 (content): $W_Q$ and $W_K$ both read the word-identity part, so a query matches every earlier key with the same word.
• Head 2 (position): $W_Q$ maps position $i$ to a one-hot at $i-1$ and $W_K$ reads the key's position, so every token attends to its predecessor.

tokens = "the cat sat on the mat because the cat was tired".split()
T, vocab = len(tokens), sorted(set(tokens))
ids = np.array([vocab.index(t) for t in tokens])
h, dk = 2, 12
X = np.zeros((T, h * dk))
X[np.arange(T), ids] = 1.0                       # word one-hot in head-1 dims
X[np.arange(T), dk + np.arange(T)] = 1.0         # position one-hot in head-2 dims

scale = 14.0                                     # sharpness of the match
Wq, Wk = np.zeros((h * dk, h * dk)), np.zeros((h * dk, h * dk))
Wq[:len(vocab), :len(vocab)] = scale * np.eye(len(vocab))
Wk[:len(vocab), :len(vocab)] = np.eye(len(vocab))
M = np.eye(T, k=-1)                              # position i -> one-hot at i - 1
Wq[dk:dk + T, dk:dk + T] = scale * M
Wk[dk:dk + T, dk:dk + T] = np.eye(T)
causal = np.tril(np.ones((T, T), bool))
Y, A = multihead(X, Wq, Wk, np.eye(h * dk), np.eye(h * dk), h, causal)

The second occurrence of cat (position 8) gets weights $0.47$ on positions 1 and 8 in head 1 and $0.88$ on position 7 in head 2. Composing these two patterns across two layers (first "find my previous occurrence", then "copy what came after it") is the induction-head mechanism that trained transformers discover on their own; the point of the toy is that nothing beyond dot products and a softmax is required to express it.

Why divide by the square root of d

If the components of $q$ and $k$ are independent with zero mean and unit variance, their dot product is a sum of $d_k$ products with zero mean and unit variance, so

Without the scaling the logits grow like $\sqrt{d_k}$, the softmax saturates towards a one-hot vector, and its gradient, $\partial a_i/\partial s_j=a_i({\delta }_{ij}-a_j)$, vanishes. Measuring this with random Gaussian queries and 16 random keys:

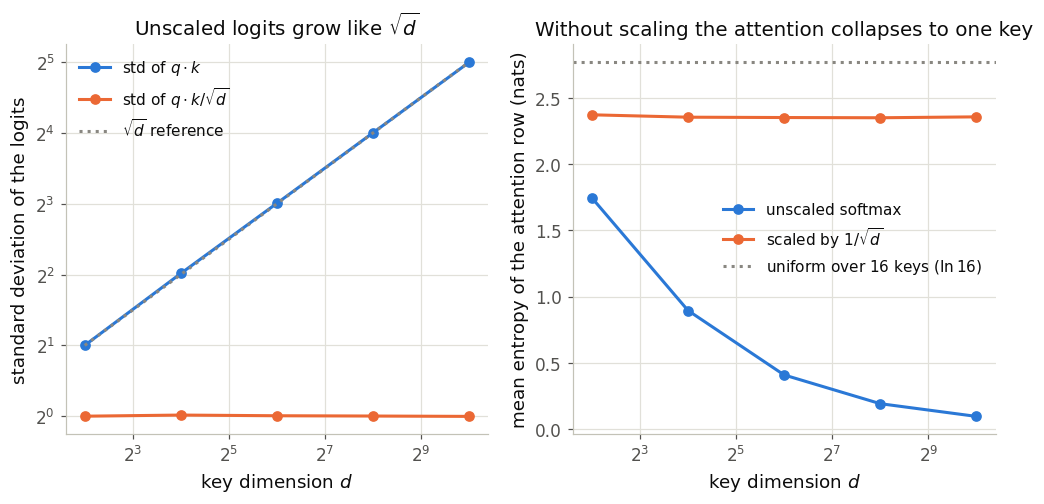

The maximum possible entropy over 16 keys is $\ln 16=2.77$ nats. With scaling, the attention stays near a soft average regardless of width, which is where a randomly initialized network should start; without it, at $d_k=1024$ the average row is essentially one-hot before any training has happened.

What the implementation leaves out

A production attention layer adds dropout on the weights, a key/value cache for autoregressive decoding, grouped or multi-query sharing of $K$ and $V$ across heads, and a fused kernel (FlashAttention) that never materializes the $T\times T$ score matrix in slow memory. None of these change the mathematics above; they change where the bytes live, which at scale is the only thing that matters.
